Description

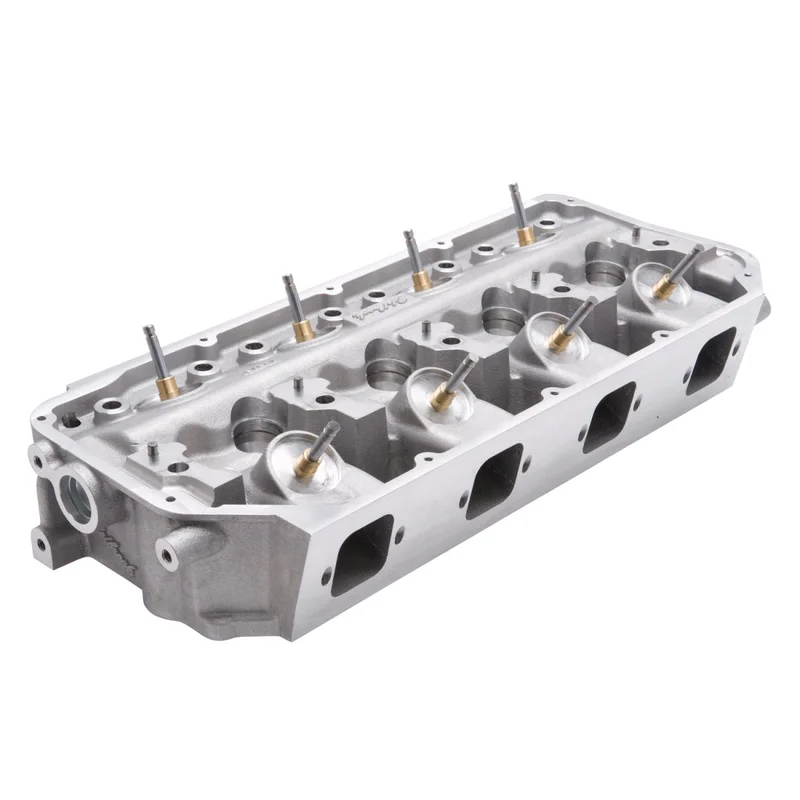

Edelbrock topplock Victor JR, Mopar 426 Hemi.

Our new Edelbrock #61189 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC’d combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

• Ventilsätesvinklar: 45°,
• Förbränningsrum: 170 cc,
• Deck height: 10,720″,
• Insugsventil: 2,320″,
• Avgasventil: 1,94″,
• Ventilskaft: 11/32″, 0,3125″ (ca 7,9 mm),
• Insugskanal: 245 cc,
• Ventilvinkel:Exhaust (Tipped) 1.5-21.5 deg/Intake Stock,
• Material: Aluminium,
• Fabrikat: Edelbrock,
• Serie:Victor Jr.

Se fullständig spec hos Edelbrock här.

Topplock säljs styckvis med ventiler (inga fjädrar, retainers, knaster, guide plates etc ingår).
